[Preview] How to use FLOSS systems to produce autonomous Arduino/Elegoo tools
This is a work in progress (a rough draft) which (through the next month) shall have much redone/removed/improved.
[This post from SubStack allows all uses.]

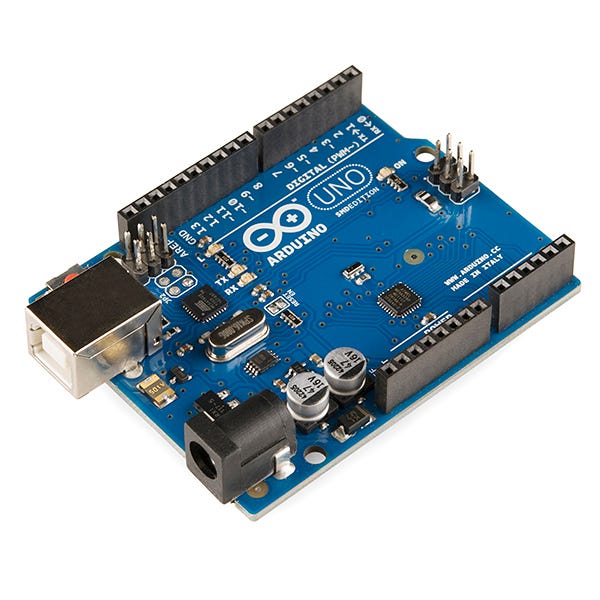

Tools compatible with this howto:
TODO, but some from this other post about robotics have common uses:
Table of Contents
Howto route
Some pseudocode from Assistant (just examples of what this post is about; future versions of this post will include own code. Just this post uses Assistant-produced code, all other posts/code was human-produced):
Abstract robot pseudocode
// Define the nanobot structure class Nanobot { // Attributes location: Coordinate target: Coordinate energy: Float taskQueue: List<Task> status: String // "idle", "working", "charging" velocity: Vector neighbors: List<Nanobot> plannedRoute: List<Coordinate> // Constructor function Nanobot(initialLocation) { this.location = initialLocation this.target = None this.energy = INITIAL_ENERGY this.taskQueue = [] this.status = "idle" this.velocity = Vector(0, 0) this.neighbors = [] this.plannedRoute = [] } // Function to move to a target location function moveTo(targetLocation) { // Set target for the movement this.target = targetLocation // Calculate direction vector direction = this.target - this.location direction = direction.normalized() // Normalize the direction vector // Calculate desired velocity based on direction and speed desiredVelocity = direction * MAX_SPEED // Update kinematics with a simple linear model this.velocity = desiredVelocity this.location += this.velocity * TIME_STEP // Update position based on time step // Check for potential collisions if detectCollision() { // If a collision is detected, adjust the velocity adjustVelocityForCollision() } // Share planned route with neighbors sharePlannedRoute() } // Collision detection function with route checking function detectCollision() { // Check against planned routes of neighbors for neighbor in this.neighbors { if isRouteIntersecting(neighbor.plannedRoute) { return true } } return false } // Check if this bot's planned route intersects with another bot's route function isRouteIntersecting(otherRoute) { for point in otherRoute { if distance(point, this.location) < COLLISION_THRESHOLD { return true } } return false } // Adjust velocity to avoid collision by planning alternate routes function adjustVelocityForCollision() { // Simple avoidance strategy: find an alternative route newRoute = computeAlternativeRoute() this.plannedRoute = newRoute // Adjust the velocity to follow the new route this.velocity = (this.plannedRoute[0] - this.location).normalized() * MAX_SPEED } // Compute an alternative route based on the current position and target function computeAlternativeRoute() { // Logic to compute a new route avoiding known routes // Placeholder for route-planning algorithm return calculateRoute(this.location, this.target, avoidNeighbors=true) } // Share planned route with neighbors function sharePlannedRoute() { routeData = {location: this.location, plannedRoute: this.plannedRoute} transmit("route_update", routeData) } // Additional methods remain the same... } // Main loop for all nanobots function main() { nanobots = initializeNanobots(NUM_NANOBOTS) while true { for bot in nanobots { bot.scanForNeighbors() // Update neighbor list if bot.status == "idle" { bot.communicate() // Share tasks and resources bot.executeTask() // Execute assigned tasks } // Move towards assigned target for the current task if not bot.taskQueue.isEmpty() { target = getTargetForCurrentTask(bot.taskQueue.peek()) bot.moveTo(target) } } wait(SIMULATION_TIME_STEP) // Control loop frequency } } // Entry point main()
Wheeled Arduino/Elegoo robot code
// Constants const int LEFT_MOTOR_PIN = 9; // PWM pin for left motor const int RIGHT_MOTOR_PIN = 10; // PWM pin for right motor const int LEFT_ENCODER_PIN = 2; // Interrupt pin for left encoder const int RIGHT_ENCODER_PIN = 3; // Interrupt pin for right encoder // Kinematics parameters const float WHEEL_RADIUS = 0.02; // Wheel radius in meters const float WHEEL_BASE = 0.1; // Distance between wheels in meters const float MAX_SPEED = 255; // Max PWM value // Encoder counts volatile int leftEncoderCount = 0; volatile int rightEncoderCount = 0; // Setup function void setup() { pinMode(LEFT_MOTOR_PIN, OUTPUT); pinMode(RIGHT_MOTOR_PIN, OUTPUT); pinMode(LEFT_ENCODER_PIN, INPUT_PULLUP); pinMode(RIGHT_ENCODER_PIN, INPUT_PULLUP); // Attach interrupts for encoder counting attachInterrupt(digitalPinToInterrupt(LEFT_ENCODER_PIN), leftEncoderISR, RISING); attachInterrupt(digitalPinToInterrupt(RIGHT_ENCODER_PIN), rightEncoderISR, RISING); Serial.begin(9600); // For debugging } // Interrupt Service Routines for encoders void leftEncoderISR() { leftEncoderCount++; } void rightEncoderISR() { rightEncoderCount++; } // Function to set motor speeds void setMotorSpeeds(int leftSpeed, int rightSpeed) { analogWrite(LEFT_MOTOR_PIN, constrain(leftSpeed, 0, MAX_SPEED)); analogWrite(RIGHT_MOTOR_PIN, constrain(rightSpeed, 0, MAX_SPEED)); } // Function to calculate the distance traveled by the wheels float calculateDistance(int encoderCount) { return (encoderCount * 2 * PI * WHEEL_RADIUS) / ENCODER_COUNTS_PER_REV; // Adjust ENCODER_COUNTS_PER_REV } // Main loop void loop() { // Example: Move forward setMotorSpeeds(200, 200); // Set both motors to move forward at speed 200 // Simulate some actions delay(2000); // Move forward for 2 seconds // Stop the motors setMotorSpeeds(0, 0); // Read encoders for position feedback float leftDistance = calculateDistance(leftEncoderCount); float rightDistance = calculateDistance(rightEncoderCount); // Print distances for debugging Serial.print("Left Distance: "); Serial.print(leftDistance); Serial.print(" m, Right Distance: "); Serial.print(rightDistance); Serial.println(" m"); // Reset encoder counts leftEncoderCount = 0; rightEncoderCount = 0; // Additional logic for movement can be added here }
Limbed Arduino/Elegoo robot code
// Constants for motor pins const int LEFT_JOINT_PIN = 9; // PWM pin for left joint motor const int RIGHT_JOINT_PIN = 10; // PWM pin for right joint motor const int ELBOW_JOINT_PIN = 11; // PWM pin for elbow joint motor const int BASE_JOINT_PIN = 12; // PWM pin for base joint motor // Encoder pins const int LEFT_ENCODER_PIN = 2; // Interrupt pin for left joint encoder const int RIGHT_ENCODER_PIN = 3; // Interrupt pin for right joint encoder const int ELBOW_ENCODER_PIN = 4; // Interrupt pin for elbow joint encoder const int BASE_ENCODER_PIN = 5; // Interrupt pin for base joint encoder // Inverse kinematics parameters const float LIMB_LENGTH_1 = 0.1; // Length of first limb in meters const float LIMB_LENGTH_2 = 0.1; // Length of second limb in meters // Encoder counts volatile int leftEncoderCount = 0; volatile int rightEncoderCount = 0; volatile int elbowEncoderCount = 0; volatile int baseEncoderCount = 0; // Setup function void setup() { pinMode(LEFT_JOINT_PIN, OUTPUT); pinMode(RIGHT_JOINT_PIN, OUTPUT); pinMode(ELBOW_JOINT_PIN, OUTPUT); pinMode(BASE_JOINT_PIN, OUTPUT); pinMode(LEFT_ENCODER_PIN, INPUT_PULLUP); pinMode(RIGHT_ENCODER_PIN, INPUT_PULLUP); pinMode(ELBOW_ENCODER_PIN, INPUT_PULLUP); pinMode(BASE_ENCODER_PIN, INPUT_PULLUP); // Attach interrupts for encoder counting attachInterrupt(digitalPinToInterrupt(LEFT_ENCODER_PIN), leftEncoderISR, RISING); attachInterrupt(digitalPinToInterrupt(RIGHT_ENCODER_PIN), rightEncoderISR, RISING); attachInterrupt(digitalPinToInterrupt(ELBOW_ENCODER_PIN), elbowEncoderISR, RISING); attachInterrupt(digitalPinToInterrupt(BASE_ENCODER_PIN), baseEncoderISR, RISING); Serial.begin(9600); // For debugging } // Interrupt Service Routines for encoders void leftEncoderISR() { leftEncoderCount++; } void rightEncoderISR() { rightEncoderCount++; } void elbowEncoderISR() { elbowEncoderCount++; } void baseEncoderISR() { baseEncoderCount++; } // Function to set joint motor speeds void setJointSpeeds(int leftSpeed, int rightSpeed, int elbowSpeed, int baseSpeed) { analogWrite(LEFT_JOINT_PIN, constrain(leftSpeed, 0, 255)); analogWrite(RIGHT_JOINT_PIN, constrain(rightSpeed, 0, 255)); analogWrite(ELBOW_JOINT_PIN, constrain(elbowSpeed, 0, 255)); analogWrite(BASE_JOINT_PIN, constrain(baseSpeed, 0, 255)); } // Inverse kinematics to calculate joint angles based on target position void inverseKinematics(float targetX, float targetY) { float distance = sqrt(targetX * targetX + targetY * targetY); // Distance to target if (distance > (LIMB_LENGTH_1 + LIMB_LENGTH_2)) { // Target unreachable Serial.println("Target unreachable"); return; } // Calculate angles using the cosine law float angle2 = acos((LIMB_LENGTH_1 * LIMB_LENGTH_1 + LIMB_LENGTH_2 * LIMB_LENGTH_2 - distance * distance) / (2 * LIMB_LENGTH_1 * LIMB_LENGTH_2)); float angle1 = atan2(targetY, targetX) - atan2(LIMB_LENGTH_2 * sin(angle2), LIMB_LENGTH_1 + LIMB_LENGTH_2 * cos(angle2)); // Convert to motor PWM values (simplified) int leftMotorSpeed = map(angle1 * 180 / PI, -90, 90, 0, 255); int rightMotorSpeed = map(angle2 * 180 / PI, -90, 90, 0, 255); // Set motor speeds setJointSpeeds(leftMotorSpeed, rightMotorSpeed, 0, 0); // Elbow and base not used in this example } // Main loop void loop() { // Example target position float targetX = 0.1; // Target X position in meters float targetY = 0.1; // Target Y position in meters inverseKinematics(targetX, targetY); // Calculate joint angles and move // Read encoders for position feedback Serial.print("Left Encoder: "); Serial.print(leftEncoderCount); Serial.print(" Right Encoder: "); Serial.print(rightEncoderCount); Serial.print(" Elbow Encoder: "); Serial.print(elbowEncoderCount); Serial.print(" Base Encoder: "); Serial.println(baseEncoderCount); // Reset encoder counts for the next loop leftEncoderCount = 0; rightEncoderCount = 0; elbowEncoderCount = 0; baseEncoderCount = 0; delay(100); // Adjust delay as needed }
Howto produce point clouds
Those point clouds show obstacles which autonomous tools must route around.
Some pseudocode from Assistant (just examples of what this post is about; future versions of this post will include own code):
Depth-image to point cloud
Has the most simple code, but requires advanced sensors (such as LIDAR) to produce images.
import numpy as np import tensorflow as tf import cv2 def create_point_cloud(color_image, depth_image, fx, fy, cx, cy): # Get image dimensions height, width, _ = color_image.shape # Generate grid of pixel coordinates x, y = np.meshgrid(np.arange(width), np.arange(height)) # Calculate normalized image coordinates z = depth_image / 1000.0 # Convert depth to meters x = (x - cx) * z / fx y = (y - cy) * z / fy # Stack to create point cloud point_cloud = np.stack((x, y, z), axis=-1) # Combine with color information point_cloud_rgb = np.concatenate((point_cloud.reshape(-1, 3), color_image.reshape(-1, 3) / 255.0), axis=-1) return point_cloud_rgb # Load your images color_image = cv2.imread('color_image.png') depth_image = cv2.imread('depth_image.png', cv2.IMREAD_UNCHANGED) # Camera parameters (example values) fx = 525.0 # Focal length in x fy = 525.0 # Focal length in y cx = 319.5 # Optical center x cy = 239.5 # Optical center y # Create point cloud point_cloud = create_point_cloud(color_image, depth_image, fx, fy, cx, cy) # Save or process the point cloud np.savetxt('point_cloud.txt', point_cloud)
Optical flow processing of visuals into point cloud (limited; static z-axis)
Uses cv2.calcOpticalFlowFarneback
of H264 to produce point cloud (limited; static z-axis)
import cv2 import numpy as np import tensorflow as tf def calculate_optical_flow(prev_frame, next_frame): # Convert frames to grayscale prev_gray = cv2.cvtColor(prev_frame, cv2.COLOR_BGR2GRAY) next_gray = cv2.cvtColor(next_frame, cv2.COLOR_BGR2GRAY) # Calculate optical flow flow = cv2.calcOpticalFlowFarneback(prev_gray, next_gray, None, 0.5, 3, 15, 3, 5, 1.2, 0) return flow def create_point_cloud_from_flow(flow, color_frame): h, w = flow.shape[:2] points = [] for y in range(h): for x in range(w): dx, dy = flow[y, x].astype(int) z = 1 # Set constant depth or calculate based on your requirements point = (x + dx, y + dy, z) # Adjust based on motion color = color_frame[y, x] / 255.0 # Normalize color points.append((*point, *color)) return np.array(points) # Load video frames (example using a video file) cap = cv2.VideoCapture('motion_video.mp4') # Read the first frame ret, prev_frame = cap.read() if not ret: print("Error reading video") exit() point_clouds = [] while True: ret, next_frame = cap.read() if not ret: break # Calculate optical flow flow = calculate_optical_flow(prev_frame, next_frame) # Create point cloud from flow and color frame point_cloud = create_point_cloud_from_flow(flow, next_frame) point_clouds.append(point_cloud) # Set current frame as previous frame for the next iteration prev_frame = next_frame cap.release() # Save or process all point clouds for i, pc in enumerate(point_clouds): np.savetxt(f'point_cloud_{i}.txt', pc)
TensorFlow: static image to point clouds
TensorFlow computes z-axis, but limited to how accurate MiDaS (monocular depth estimation) is.
import tensorflow as tf import numpy as np import cv2 # Load a pre-trained depth estimation model (e.g., MiDaS) model = tf.keras.models.load_model('path_to_your_depth_model.h5') def estimate_depth(image): # Preprocess the image for the model input_image = cv2.resize(image, (384, 384)) # Resize as per model requirements input_image = np.expand_dims(input_image, axis=0) / 255.0 # Normalize depth_map = model.predict(input_image) return depth_map[0, :, :, 0] # Assuming the model outputs a single channel depth map def create_point_cloud(color_image, depth_map): h, w = depth_map.shape points = [] for y in range(h): for x in range(w): z = depth_map[y, x] # Get depth value if z > 0: # Only consider valid depth point = (x, y, z) # (x, y, z) color = color_image[y, x] / 255.0 # Normalize color points.append((*point, *color)) return np.array(points) # Load your color image color_image = cv2.imread('color_image.png') # Estimate depth from the color image depth_map = estimate_depth(color_image) # Create point cloud point_cloud = create_point_cloud(color_image, depth_map) # Save the point cloud np.savetxt('point_cloud.txt', point_cloud)
Optical flow processing of visuals into point cloud (computes z-axis)
Uses cv2.calcOpticalFlowFarneback
of H264 to produce point cloud (computes z-axis)
import cv2 import numpy as np def calculate_optical_flow(prev_frame, next_frame): prev_gray = cv2.cvtColor(prev_frame, cv2.COLOR_BGR2GRAY) next_gray = cv2.cvtColor(next_frame, cv2.COLOR_BGR2GRAY) # Calculate optical flow using Farneback method flow = cv2.calcOpticalFlowFarneback(prev_gray, next_gray, None, 0.5, 3, 15, 3, 5, 1.2, 0) return flow def estimate_depth_from_motion(flow, known_height): h, w = flow.shape[:2] depth_map = np.zeros((h, w)) for y in range(h): for x in range(w): dx, dy = flow[y, x].astype(float) # Assuming a simple linear relationship for depth estimation depth = known_height / (1 + np.sqrt(dx**2 + dy**2)) depth_map[y, x] = max(depth, 0) # Ensure non-negative depth values return depth_map def create_point_cloud(color_frame, flow, depth_map): h, w = depth_map.shape points = [] for y in range(h): for x in range(w): z = depth_map[y, x] if z > 0: # Only consider valid depth point = (x, y, z) # (x, y, z) color = color_frame[y, x] / 255.0 # Normalize color points.append((*point, *color)) return np.array(points) # Load video frames (example using a video file) cap = cv2.VideoCapture('motion_video.mp4') # Read the first frame ret, prev_frame = cap.read() if not ret: print("Error reading video") exit() # Known height of objects in the scene (or average height) known_height = 1.5 # Example value in meters point_clouds = [] while True: ret, next_frame = cap.read() if not ret: break # Calculate optical flow flow = calculate_optical_flow(prev_frame, next_frame) # Estimate depth from motion depth_map = estimate_depth_from_motion(flow, known_height) # Create point cloud point_cloud = create_point_cloud(next_frame, flow, depth_map) point_clouds.append(point_cloud) # Set current frame as previous frame for the next iteration prev_frame = next_frame cap.release() # Save or process all point clouds for i, pc in enumerate(point_clouds): np.savetxt(f'point_cloud_{i}.txt', pc)
Howto use point clouds to route
Start with this code (also from Assistant), which goes into the code from Howto route:
function detectObstacles(pointCloud): for point in pointCloud: if isObstacle(point): return true // Obstacle detected return false // No obstacles function moveTo(targetLocation): pointCloud = generatePointCloud() // Generate or update point cloud if detectObstacles(pointCloud): adjustPath() // Modify path to avoid obstacles else: proceedTo(targetLocation) // Move to target location
function isObstacle(point): // Define a threshold distance for obstacle detection OBSTACLE_THRESHOLD = 0.5 // Example value in meters // Check if the point's z-coordinate (depth) is below the threshold if point.z < OBSTACLE_THRESHOLD: return true // Point is an obstacle return false // Point is not an obstacle function adjustPath(): // Get the current location and target location currentLocation = getCurrentLocation() targetLocation = getTargetLocation() // Calculate a new target location that avoids the obstacle avoidanceVector = computeAvoidanceVector(currentLocation, targetLocation) // Set the new target location newTargetLocation = targetLocation + avoidanceVector setTargetLocation(newTargetLocation) function computeAvoidanceVector(currentLocation, targetLocation): // Calculate the direction vector from current to target location direction = targetLocation - currentLocation // Normalize the direction vector direction = normalize(direction) // Create an avoidance vector avoidanceDistance = 0.3 // Distance to move away from the obstacle avoidanceVector = direction.perpendicular() * avoidanceDistance // Move perpendicular to the direction return avoidanceVector
function main(): while true: pointCloud = generatePointCloud() // Update point cloud // Check for obstacles obstacleDetected = false for point in pointCloud: if isObstacle(point): obstacleDetected = true break if obstacleDetected: adjustPath() // Modify path to avoid obstacles else: proceedTo(getTargetLocation()) // Move towards target location wait(SIMULATION_TIME_STEP) // Control loop frequency
, plus make Howto use point clouds to route continuous — such as how (opposed to the A* path formula which must restart if sensor input is new, ) the D* path formula’s sensor use is continuous — the example code uses stored (not continuous) visuals to produce point clouds.
Added "Howto use point clouds to route" (which uses the https://poe.com/s/p0NTuGJRBDlol01YJY5c codes)
Added "Howto produce point clouds" (which uses https://poe.com/s/sx1MuZzPcLy3p9u0elpq code)
